Key Advantages
GC SERIES
Adjustable Ø20–110mm Grip Range
Pneumatic grippers with quick-change pads support everything from 20ml vials to 1L bottles on a single machine without tooling changes.
Single-Operator Ergonomic Workflow
Reduces manual handling fatigue and repetitive-strain injuries versus hand-loading, while supporting 15–30 BPM throughput.
Gentle Grip Force Control
Adjustable pneumatic pressure (0.2–0.5 MPa) prevents glass bottle cracking and plastic deformation across formats.
360° Bottle Orientation
Optional rotating grip head aligns bottles for front-label orientation, cap application, or vision-system inspection.
SUS304 Contact Surfaces
Stainless steel gripper arms and contact pads meet hygiene requirements for cosmetics, food, beverage, and pharmaceutical lines.
Up to 70% Breakage Reduction
Eliminates the inconsistency of manual hand-off, reducing drop-and-crash incidents in glass-bottle filling lines.
Technical Specifications
Typical Applications
The GC Gripping Machine bridges hand-feeding and full automation on INNOPKG’s semi-automatic and automatic lines:
Cosmetics & Personal Care
Load perfume, serum, and lotion bottles into ATLAS or HYDRA filling lines with consistent orientation.
Pharmaceutical
Ergonomic handling of glass syrup and oral liquid bottles before capping and labeling.
Beverage
Semi-automatic loading for premium glass-bottle water, juice, and craft beverage lines.
Specialty Chemicals
Careful handling of reagent and laboratory-grade containers without contamination risk.
Key Components & Detail Features
System Integration (Reference GC 100)

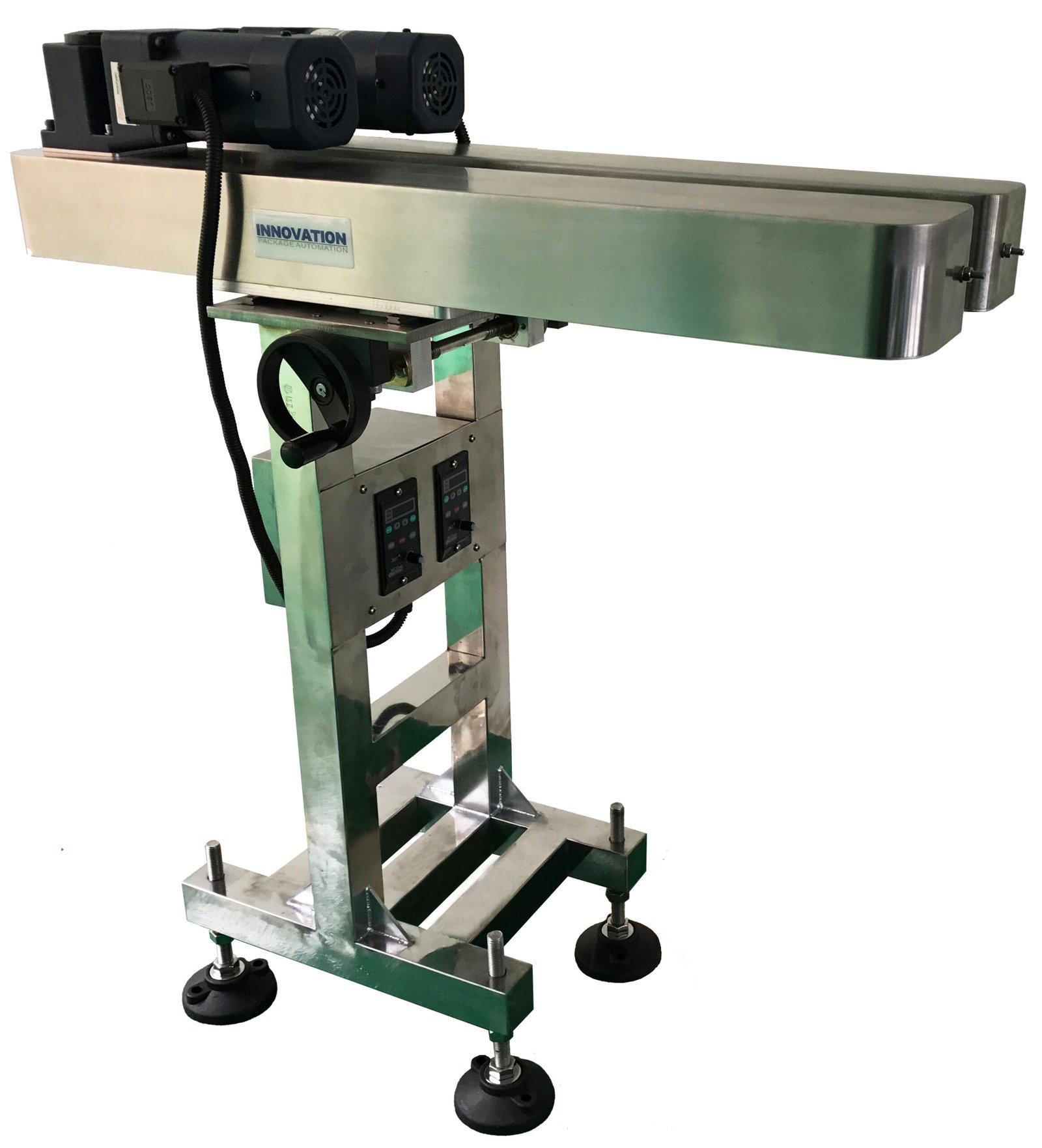

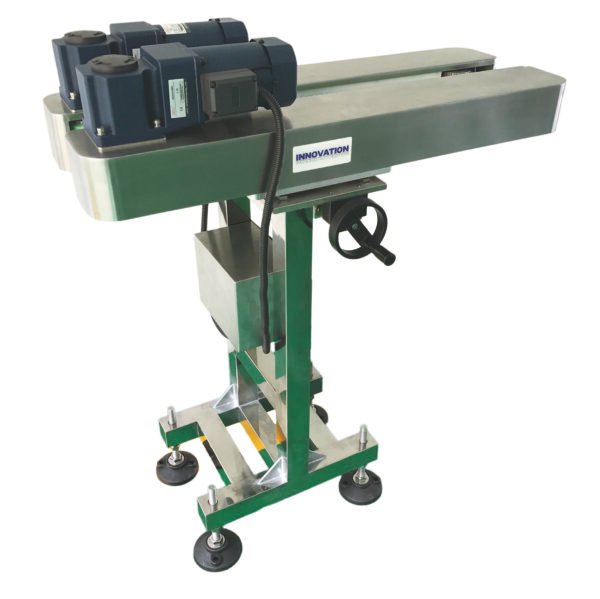

GC 100 is a bottle gripping machine for inline transfer and bottom-coding. Adjustable gripper spacing, speed, and height. Compatible with inkjet printer for bottle-bottom coding.
Adjustable Conveying Specs
Bottle height range: 40-200mm. Belt speed: 6-15 m/min. Effective conveying length: 700mm. Power 0.24kW, 220V. Dimensions 850×400×1000mm, weight 70kg.
Lightweight Compact Frame
Compact SUS304 frame for tabletop or inline mounting. Manual bottle loading with assisted gripping for hand-off to downstream filling station.
Optional Add-ons
Inkjet / laser coder for bottle bottom; vision system for orientation check; multi-bottle batch handling.
Frequently Asked Questions
What are the technical specifications of GC 100?
+
GC 100 is a bottle gripping machine for inline transfer. Bottle height range 40-200mm, belt speed 6-15 m/min, effective conveying length 700mm. Power 0.24kW, 220V. Dimensions 850×400×1000mm, weight 70kg. Adjustable gripper spacing/speed/height. Compatible with inkjet coder for bottle-bottom printing.
What is the standard lead time?
+
Standard lead time for new equipment is approximately 60 working days after deposit and design finalization (reference: ATLAS 310 three-line machine). Custom configurations, special tooling, or non-standard voltages may extend the lead time. A detailed production schedule with weekly photo and video updates is provided for every order.
Can this machine be customized to my product, bottle, and cap?
+
Yes. All INNOPKG machines support custom configuration. Typical customization areas include: filling volume range (e.g., ATLAS 220 ships with 200ml cylinder; 500ml cylinder is an optional kit that expands the range to 100-500ml), bottle diameter / height / neck size (each machine has a defined compatible range — see Specifications), cap chuck diameter (PALLAS chucks cover Ø15-90mm depending on model), and voltage (220V/380V standard, 110V/415V/480V available on request). Our engineering team reviews your samples and product specs and confirms feasibility before quotation.
What voltage and air supply does the machine need?
+
Standard supply is 220V 50/60Hz or 380V 50Hz 3-phase (varies by model — see Specifications tab). Air supply requirement is 0.4-0.6 MPa clean compressed air for most models; HYDRA 212 and PALLAS 210 require 0.5-0.7 MPa. We specify exact requirements per model in the quotation.
What packaging and shipping terms apply?
+
Default incoterm is EXW (factory). CIF (named destination port) and DDP (delivered duty paid) are available on request. Equipment is wrapped in protective film, crated in fumigation-free plywood with shock indicators, and includes the operation manual, electrical schematics, and FAT report. Sea freight transit to most major ports is approximately 25-35 days; air freight 5-7 days.
Do you provide installation, training, and commissioning?
+
Yes. Every machine ships with detailed English operation manual and electrical schematics. Remote commissioning support is available via video call. For on-site installation and commissioning, engineer dispatch is quoted per project (typical scope: 1-2 engineers, 5-10 working days on site, including round-trip economy airfare, local transport, accommodation, and per-diem). Scope and cost are defined in the quotation.
What about after-sales support and spare parts?
+
Warranty is 12 months from start-up or 18 months from dispatch (whichever comes first), per the default quotation terms. Warranty scope covers manufacturing defects under normal operating conditions. Wear parts (seals, gaskets, O-rings, nozzles) are recommended to be stocked by the customer. Spare parts can be ordered at any time; lead time and pricing depend on part availability — please contact our service team with your machine serial number for an accurate quote.
Certifications & Service
Reference Customers
Serving 40+ manufacturing customers across cosmetics, pharma, food & beverage, and daily chemical industries — including Cosmax, Nuosibell, Longrich… Reference list available on request.
Engineering Support
