Key Advantages
Scalable head count matches throughput targets without major mechanical reconfiguration.
Servo-driven volumetric piston control maintains audit-ready fill precision.
Wide filling range covers small cosmetic formats to large household chemical containers.
High-speed linear multi-head architecture for large-scale production lines.
Modular change parts and recipe memory reduce downtime in multi-SKU environments.
Sanitary surfaces support cosmetics, daily chemical, and pharmaceutical hygiene requirements.
Technical Specifications
| Filling Heads | 6 |
|---|---|
| Filling Range | 40-200ml standard; up to 1L/2.5L (large-capacity variant) |
| Filling Accuracy | ±1ml @ 200ml (water medium) |
| Power | 0.75-4kW (varies by configuration) |
| Air Pressure | 0.4-0.6 MPa |
| Dimensions | ~2200 × 1900 × 2200mm |
| Use Case | Multi-spec small-to-medium bottle production |
Typical Applications
Key Components & Detail Features
🎛️ Siemens PLC + Touchscreen HMI
Siemens PLC and HMI (or Schneider / Mitsubishi alternative). Recipe memory, parameter setting, and OEE dashboard.

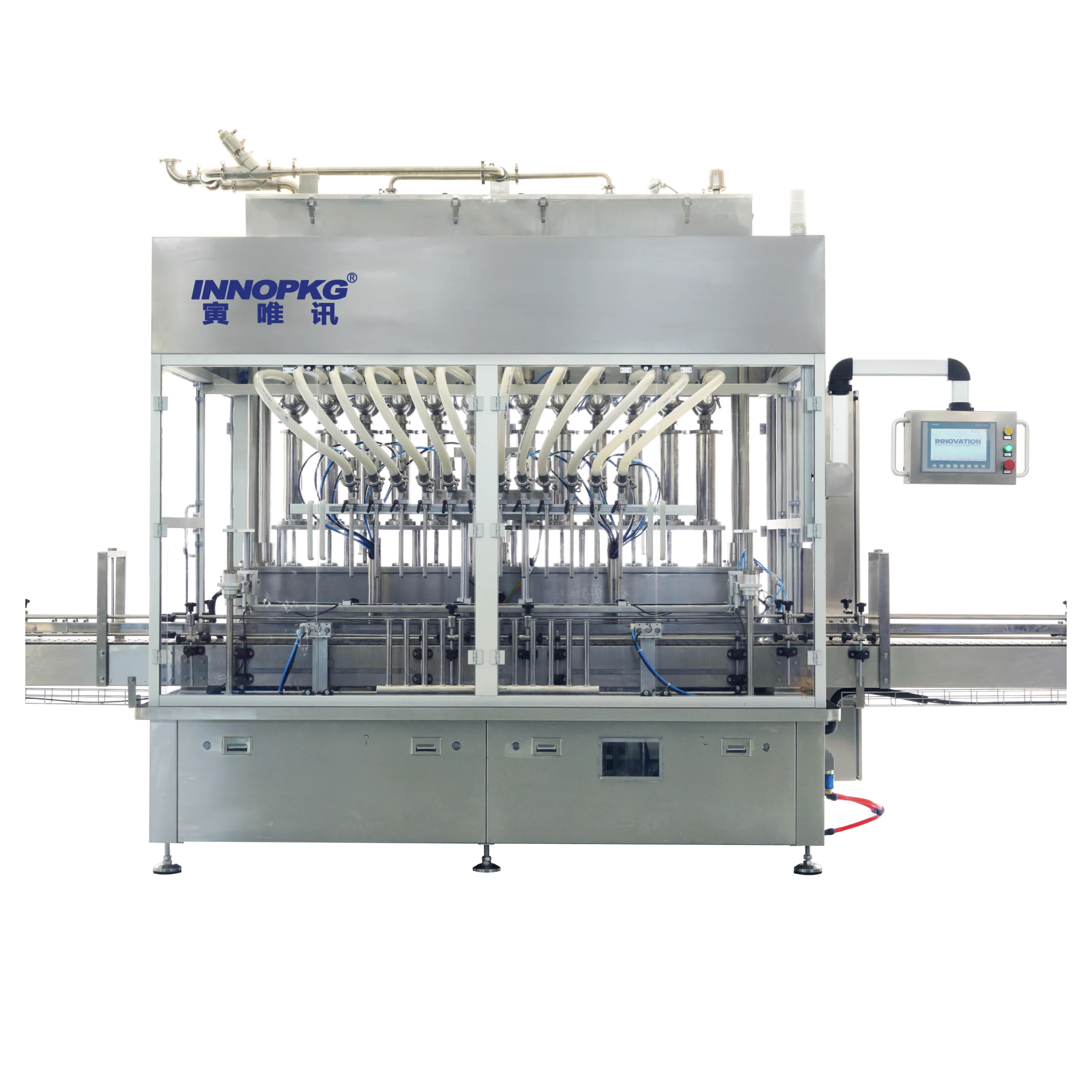

⚙️ Multi-Head Servo-Driven Piston Filling
HYDRA 130: 5 or 8 filling heads. HYDRA 210: 6 heads. HYDRA 212: 12 heads. Servo-driven volumetric cylinder. ESG Φ16 filling valve (SUS316L) with suck-back to prevent dripping.
🛢️ Large Material Tank + Cylinder
HYDRA 130: 200L material tank, 5.5L volumetric cylinder. HYDRA 210: configurable for 40-200ml (200ml cylinder) or 1L-2.5L (large-capacity variant for laundry liquid).
🛡️ SUS316L Contact + FESTO Pneumatics + NSK Bearings
All product-contact parts in SUS316L stainless steel. Pneumatic system: FESTO. Bearings: NSK (Japan). Frame: SUS304 stainless steel + aluminum structure.
🧼 CIP-Ready Design (HYDRA 130 Standard)
HYDRA 130 includes one-key automatic CIP (Clean-in-Place) function — for daily chemical and personal care applications where cross-contamination control is critical.
🔌 Optional Add-ons
Peristaltic pump option (for ultra-hygienic applications); 12-head upgrade; CIP system upgrade; vision inspection; date coder; nitrogen-flush.
Frequently Asked Questions
❓ What is the difference between HYDRA 210 and HYDRA 212?
HYDRA 210 has 6 filling heads and supports 40-200ml (standard cylinder) or up to 1L/2.5L (large-capacity variant). HYDRA 212 has 12 heads and supports 200-1000ml at 80-100 BPM. Choose HYDRA 212 for higher-throughput large-format needs.
❓ What is the standard lead time?
Standard lead time for new equipment is approximately 60 working days after deposit and design finalization (reference: ATLAS 310 three-line machine). Custom configurations, special tooling, or non-standard voltages may extend the lead time. A detailed production schedule with weekly photo and video updates is provided for every order.
❓ Can this machine be customized to my product, bottle, and cap?
Yes. All INNOPKG machines support custom configuration. Typical customization areas include: filling volume range (e.g., ATLAS 220 ships with 200ml cylinder; 500ml cylinder is an optional kit that expands the range to 100-500ml), bottle diameter / height / neck size (each machine has a defined compatible range — see Specifications), cap chuck diameter (PALLAS chucks cover Ø15-90mm depending on model), and voltage (220V/380V standard, 110V/415V/480V available on request). Our engineering team reviews your samples and product specs and confirms feasibility before quotation.
❓ What voltage and air supply does the machine need?
Standard supply is 220V 50/60Hz or 380V 50Hz 3-phase (varies by model — see Specifications tab). Air supply requirement is 0.4-0.6 MPa clean compressed air for most models; HYDRA 212 and PALLAS 210 require 0.5-0.7 MPa. We specify exact requirements per model in the quotation.
❓ What packaging and shipping terms apply?
Default incoterm is EXW (factory). CIF (named destination port) and DDP (delivered duty paid) are available on request. Equipment is wrapped in protective film, crated in fumigation-free plywood with shock indicators, and includes the operation manual, electrical schematics, and FAT report. Sea freight transit to most major ports is approximately 25-35 days; air freight 5-7 days.
❓ Do you provide installation, training, and commissioning?
Yes. Every machine ships with detailed English operation manual and electrical schematics. Remote commissioning support is available via video call. For on-site installation and commissioning, engineer dispatch is quoted per project (typical scope: 1-2 engineers, 5-10 working days on site, including round-trip economy airfare, local transport, accommodation, and per-diem). Scope and cost are defined in the quotation.
❓ What about after-sales support and spare parts?
Warranty is 12 months from start-up or 18 months from dispatch (whichever comes first), per the default quotation terms. Warranty scope covers manufacturing defects under normal operating conditions. Wear parts (seals, gaskets, O-rings, nozzles) are recommended to be stocked by the customer. Spare parts can be ordered at any time; lead time and pricing depend on part availability — please contact our service team with your machine serial number for an accurate quote.
Certifications & Service
🏭 Reference Customers
Serving 40+ manufacturing customers across cosmetics, pharma, food & beverage, and daily chemical industries — including Cosmax, Nuosibell, Longrich, Beijing Sunshine, Vebro, WIPRO, and other named projects. Reference list available on request.
🌐 Engineering Support
Based in China with project engineering in Chinese / English. We support FAT (Factory Acceptance Test), SAT (Site Acceptance Test), and on-site commissioning dispatch on a per-project basis. On-site engineer days are quoted per project scope.
📦 Shipping Terms
Default EXW (factory). CIF and DDP available. Equipment is crated in fumigation-free plywood with shock indicators. Standard crating meets international sea-freight handling requirements.
🛡️ Warranty (Default)
Default warranty terms per quotation: 12 months from start-up or 18 months from dispatch, whichever comes first. Warranty scope, exclusions, and extended warranty options are defined per project contract.
